ProAV · Corporate · Conference Rooms

ScalableDesktop

Run any Windows application across a seamless multi-projector display. Up to 16 projectors. One PC. One-click calibration. Simple to deploy. Simple to run.

Contact Us Explore Features
16 Projectors supported
1-Click Calibration
Any Windows application
0 Extra PCs needed
Overview

ANY WINDOWS APP.
ANY DISPLAY.
ONE PC.

ScalableDesktop scales the Windows desktop across any flat or curved multi-projector display, using the same patented camera-based calibration technology as Scalable Display Manager. No host/client architecture. No external hardware dependencies. No steep learning curve. For integrators, that means faster installs and a system that's simple to hand off and support.

Up to 16 projectors driven from a single PC. Any Windows application runs seamlessly across the full display surface without modification. The fastest path from hardware to a finished, calibrated display.

Talk to our ProAV team →

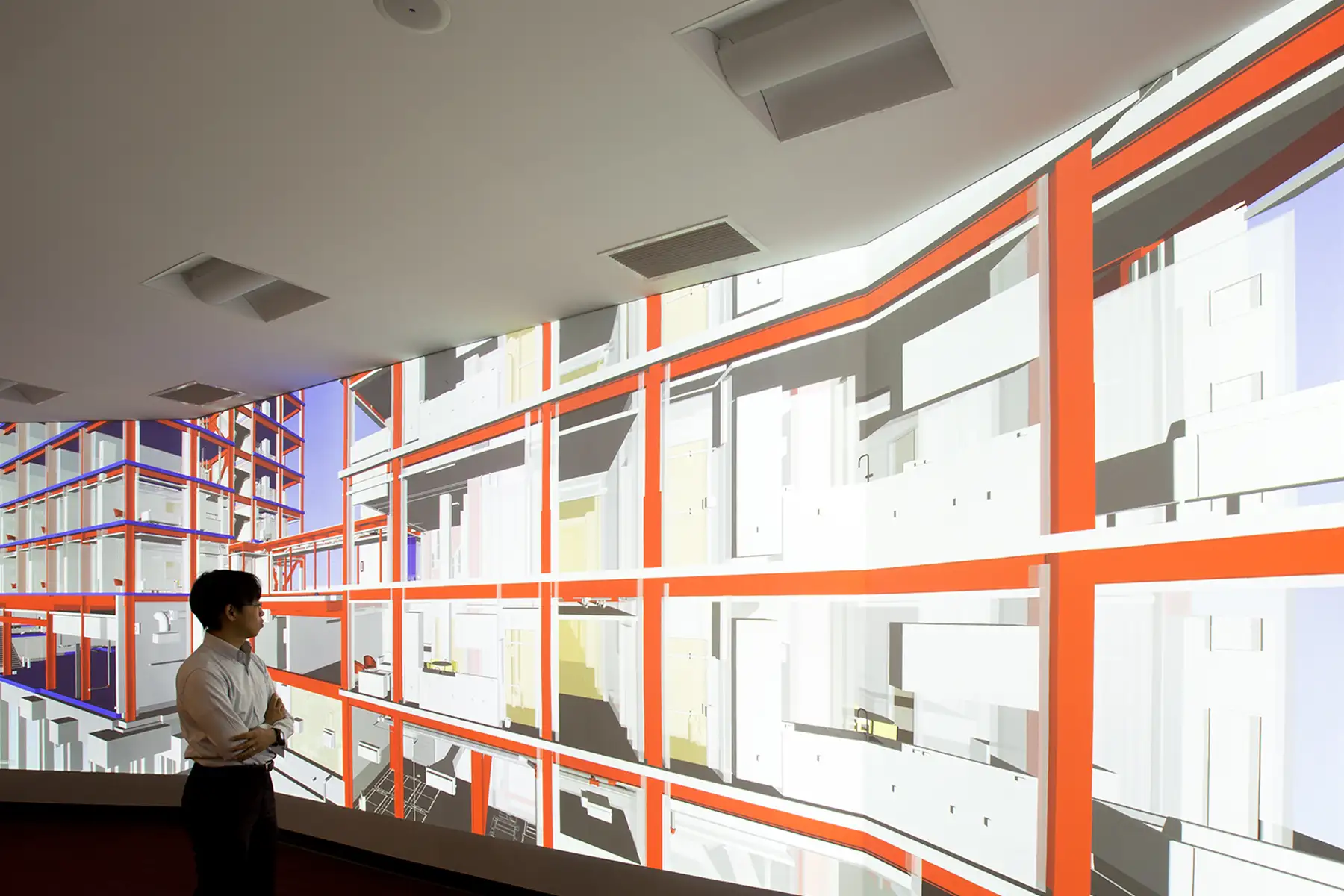

Multi-projector display calibrated with ScalableDesktop running any Windows application seamlessly
Single PC
No host/client setup
ScalableDesktop · Up to 16 projectors · Any Windows app
Capabilities

BUILT FOR
SIMPLICITY

ScalableDesktop delivers the same patented calibration accuracy as SDM — packaged for single-PC installations where ease of use is as important as display quality.

⬡
Automatic Warp & Blend
Camera-based calibration automatically warps and edge-blends up to 16 projectors into one seamless display. No manual adjustment. No projector math. One click.
▣
Color & Intensity Uniformity
Automatic color calibration eliminates projector-to-projector variation. Consistent luminance and color balance across the entire display surface — no lamps that look different.
◎
Application Independent
Works at the Windows desktop level — any application that runs on Windows runs seamlessly across your display. No per-application configuration. No integration required.
◉
Scheduled Recalibration
Configure automatic recalibration on a schedule — daily, weekly, or on any interval. The display stays geometrically correct without any operator involvement.
◉
Diverse Use Cases
The direct Nvidia driver integration makes it suitable for digital signage, command & control, corporate, BIM and engineering design review... If the application benefits from seamless high resolution visuals, ScalableDesktop is a great option.
◉
NVIDIA QUADRO NVAPI
We co-developed an API with Nvidia to enable driver level warping on the Quadro series of graphics card. We maintain a close relationship with Nvidia to ensure a robust and reliable solution for our clients.
Display Geometry

FLAT OR CURVED.

ScalableDesktop handles any flat or curved multi-projector display geometry from a single PC. Whether it's a conference room videowall or a curved digital signage display, the same intuitive workflow calibrates it automatically.

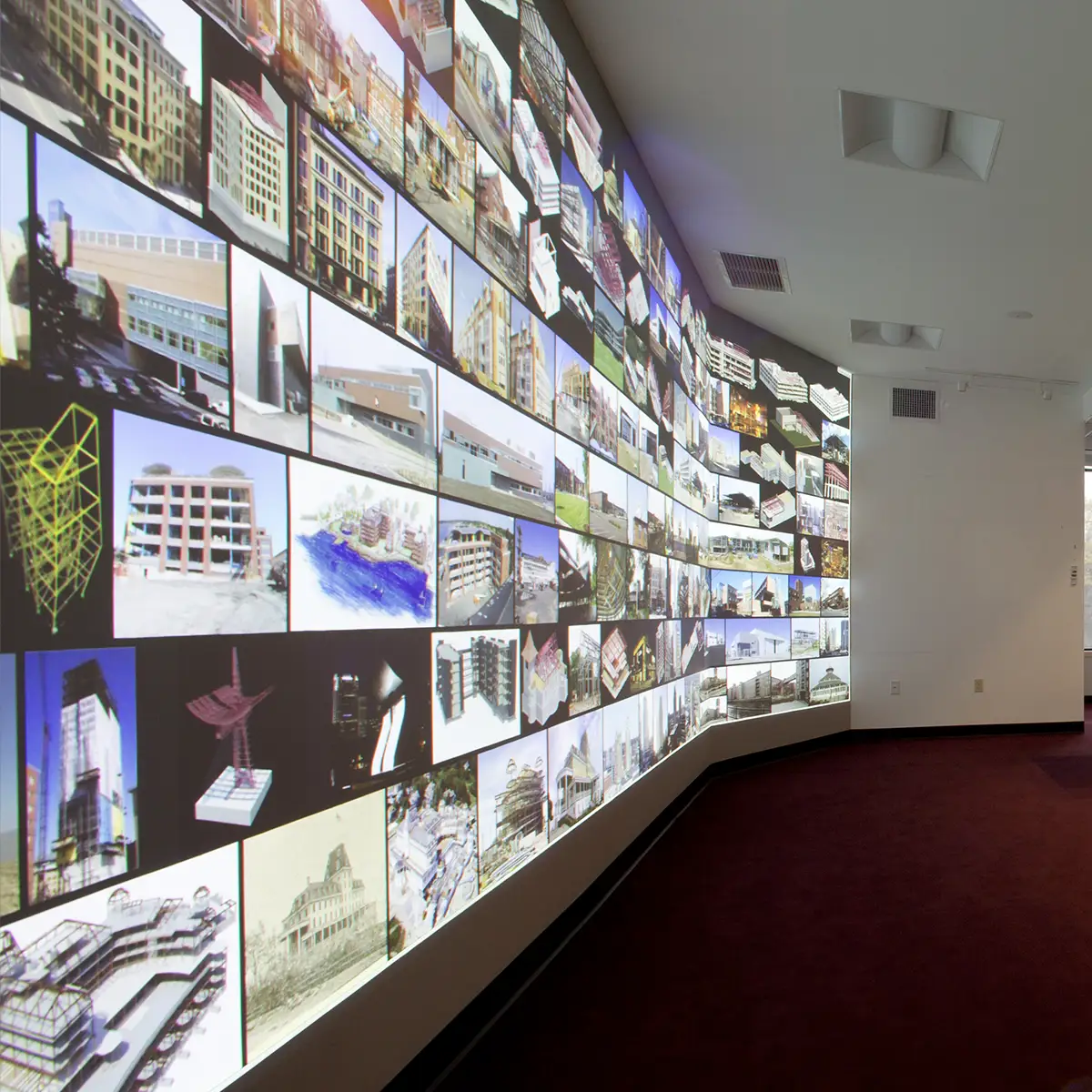

Flat and curved multi-projector display calibrated with ScalableDesktop
Single PC Simplicity

ONE PC.
NO COMPLEXITY.

Unlike cluster-based systems, ScalableDesktop runs entirely from a single PC. No host/client architecture, no additional servers, no specialist integrator required. Any Windows content plays seamlessly across the full display — the OS itself is warped, so every application just works.

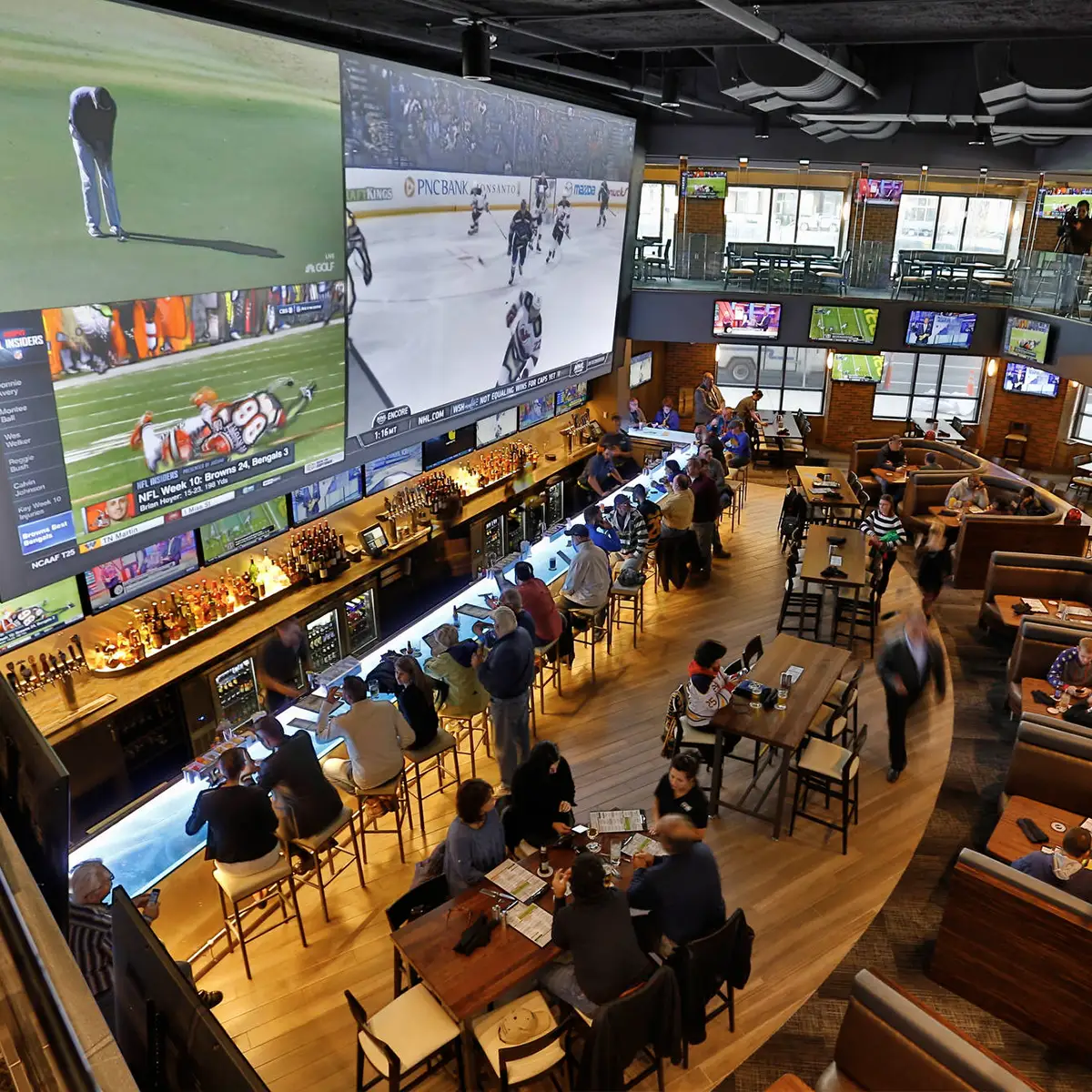

Single PC driving a seamless multi-projector display with ScalableDesktop
Permanent Installation

SET IT UP ONCE.
FORGET ABOUT IT.

Scheduled recalibration runs automatically on your timetable — overnight, between sessions, or on demand — with no technician required. ScalableDesktop keeps your display looking perfect for years. One camera, one PC, zero ongoing maintenance.

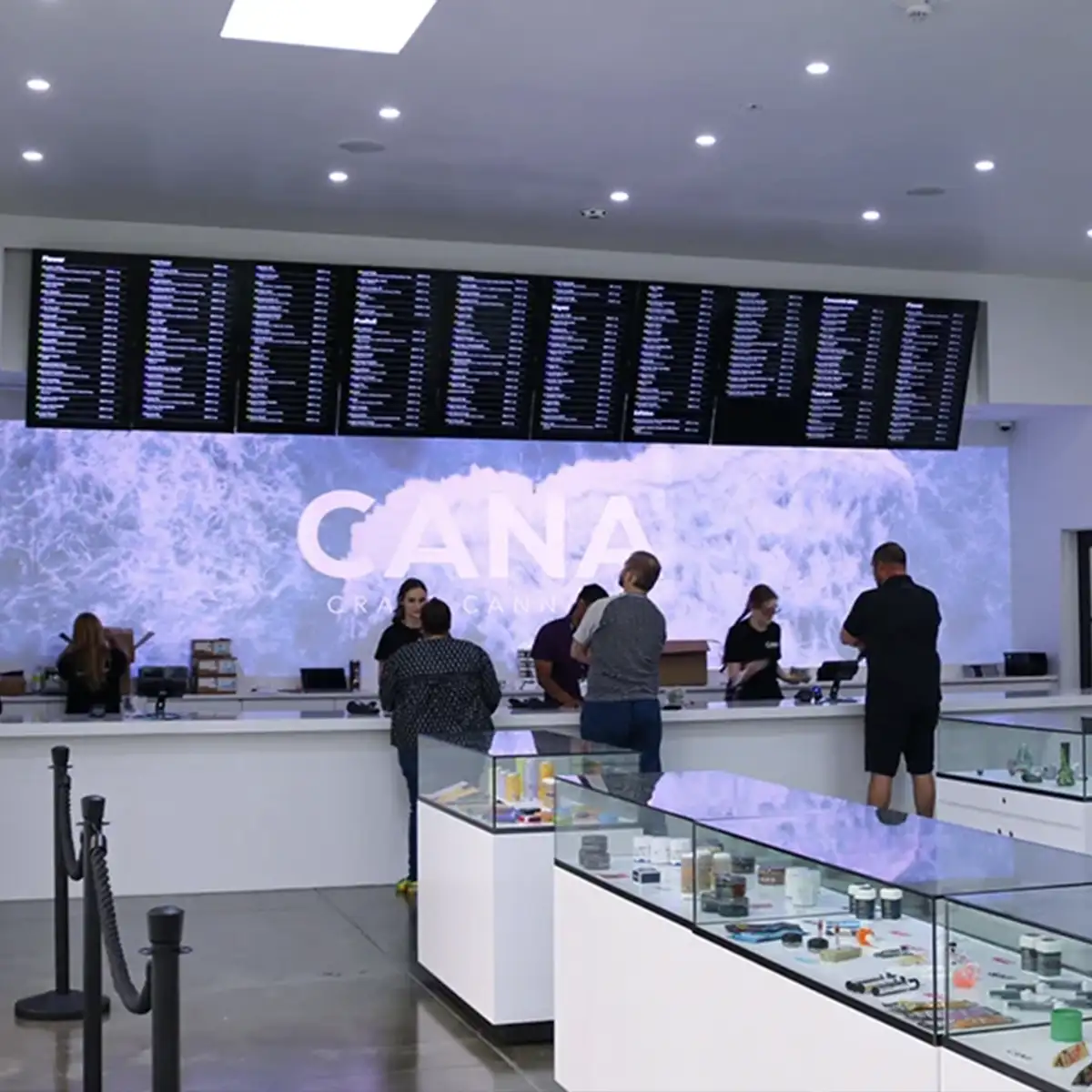

ScalableDesktop permanent installation with scheduled automatic recalibration
Requirements

SYSTEM REQUIREMENTS

A computer built to your content specifications is necessary for an optimal ScalableDesktop system. The following guidelines will be suitable for most installations. If you are building an exceptionally large or complex system please contact us for further recommendations.

  • Windows 11 (for Scalable 9.0 or newer)
  • Windows 10 64-bit (for Scalable 3.5 or newer)
  • 8GB of RAM minimum, 16 GB of RAM recommended
  • Intel Core i5 Processor or better
  • 25 GB of hard drive space available
  • A supported NVIDIA graphics card
  • A separate x16 PCI express slot for each NVIDIA graphics card (running at full x16 bandwith)
  • Powered EDID emulators
  • Quadro sync card if using multiple graphics cards (For systems with multiple NVIDIA graphics cards contact us for recommended workstation specifications)

*If you are using Logitech cameras and a laptop to calibrate your system, you can use up to 2 Logitech cameras. If your system requires more than 2 Logitech webcams, you will need a desktop computer with independent port USB or switch to an alternate camera such as the GigE.

FAQ

COMMON
QUESTIONS

How many projectors does ScalableDesktop support?
ScalableDesktop supports up to 16 projectors driven from a single PC. It is designed for flat and curved multi-projector displays where all outputs originate from one machine — no host/client architecture required.
Does ScalableDesktop work with any Windows application?
Yes. ScalableDesktop operates at the desktop level — it warps and blends the entire Windows display surface, so any application that runs on Windows automatically benefits from the calibration. No per-application integration or configuration is needed.
What screen geometries does ScalableDesktop support?
ScalableDesktop supports flat and curved screen geometries — including cylindrical and spherical curves. It is designed for horizontal multi-projector arrays typical in corporate, ProAV, and conference room installations. For dome or fully custom 3D surfaces, Scalable Display Manager or Scalable Atlas are the appropriate products.
Does ScalableDesktop require a separate calibration PC?
No. ScalableDesktop runs entirely on the display PC — there is no separate calibration host required. A webcam connected to the display PC is all that is needed to perform calibration. This is one of the key differences from Scalable Display Manager, which uses a dedicated calibration laptop.
Can ScalableDesktop recalibrate automatically?
Yes. ScalableDesktop supports scheduled recalibration — the system can be configured to recalibrate automatically at set intervals without any operator intervention. This ensures the display remains geometrically correct even as projectors drift due to temperature changes or lamp aging.
What graphics cards does ScalableDesktop support?
ScalableDesktop is compatible with a broad range of professional and consumer graphics cards. For the current list of verified compatible hardware, see the ScalableDesktop Supported Graphics Cards page on the Scalable support site.
Get Started

READY TO BUILD
YOUR DISPLAY?

ScalableDesktop is the fastest path from hardware to a finished, calibrated multi-projector display. Contact our team to discuss your installation requirements or request a trial.

Contact Us All Products
